Sesame Kit

SKU: ANOBRKT0315103
Sesame Kit - Mechboards
Sesame Kit - Mechboards

Sesame Kit

SKU: ANOBRKT0315103
Regular price £40.00
/
Tax included for UK customers. Shipping calculated at checkout.
  • Only 10 items in stock
  • Inventory on the way

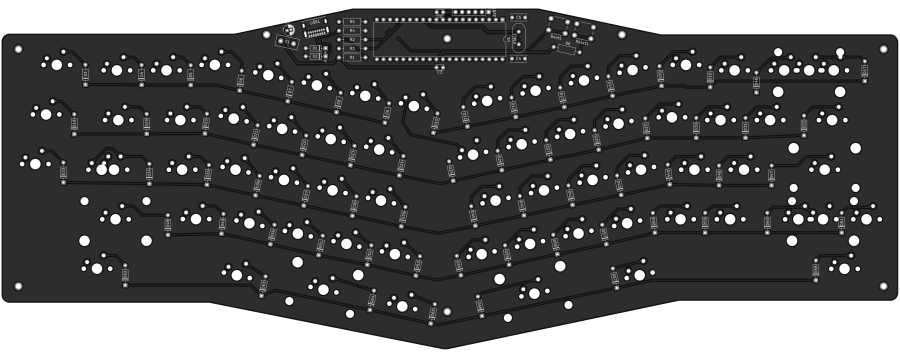

The Sesame! Alice like ergo keyboard using only THT parts. Created by kb-elmo and sold under licence. Build guide here on imgur or the official one is in the GitHub repository Kit includes: Main P... Read more +

The Sesame! Alice like ergo keyboard using only THT parts. Created by kb-elmo and sold under licence.

Build guide here on imgur or the official one is in the GitHub repository

Kit includes:

  • Main PCB
  • Bottom plate made from PCB material (FR4)
  • Switch plate made from PCB material (FR4)
  • All electronic components*
  • Controller flashed with USBaspLoader bootloader
  • Brass standoffs and screws
  • Acrylic Cover



*please note we include 75ohm resistors in place of the 68ohm ones referenced in the build guide- they have been tested and work well.

**pay attention to the numbers on the blue capacitors- despite how the footprints look, the 104s should go next to the long sides of the atmega (large black chip), and the 220s should go next to the crystal (metal oval component)

Version

Rev 1

Switch Compatibility

MX Style

Requires 5-pin

No (5-pin recommended)

Lighting

No

Hot-swap

No
(Milmax possible)

Requires Soldering

Yes

Kit Contents

PCB
Diodes
FR4 Case + Plate
Acrylic Cover
Atmega MCU
Resistors
Capacitors
LEDs
Reset Switches
Screws
Standoff
Feet

Required to Complete


Switches x63
Keycaps
PCB Mount Stabilisers x6 (Recommended)

Build Guide

Link
