Sofle Kit
Description

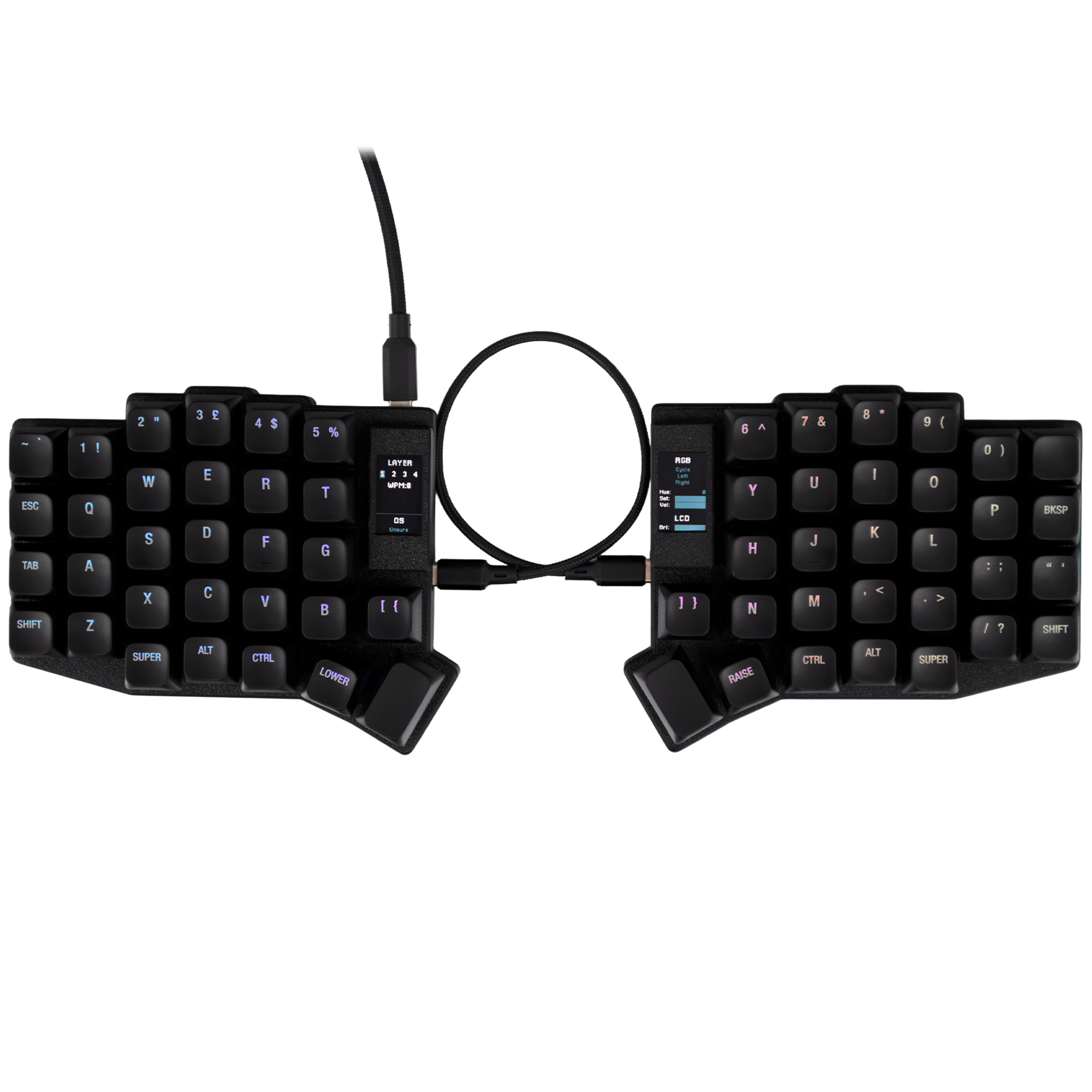

Behold, this is SofleKeyboard – a 6×4+5 keys column-staggered split keyboard with encoder support. Based on Lily58, Corne, and Helix keyboards.
This kit comes with everything you need to build your own SofleKeyboard, all you will need is switches, controllers, keycaps and a USB cable. For a complete list of what is provided, check the full description below.
Components included:

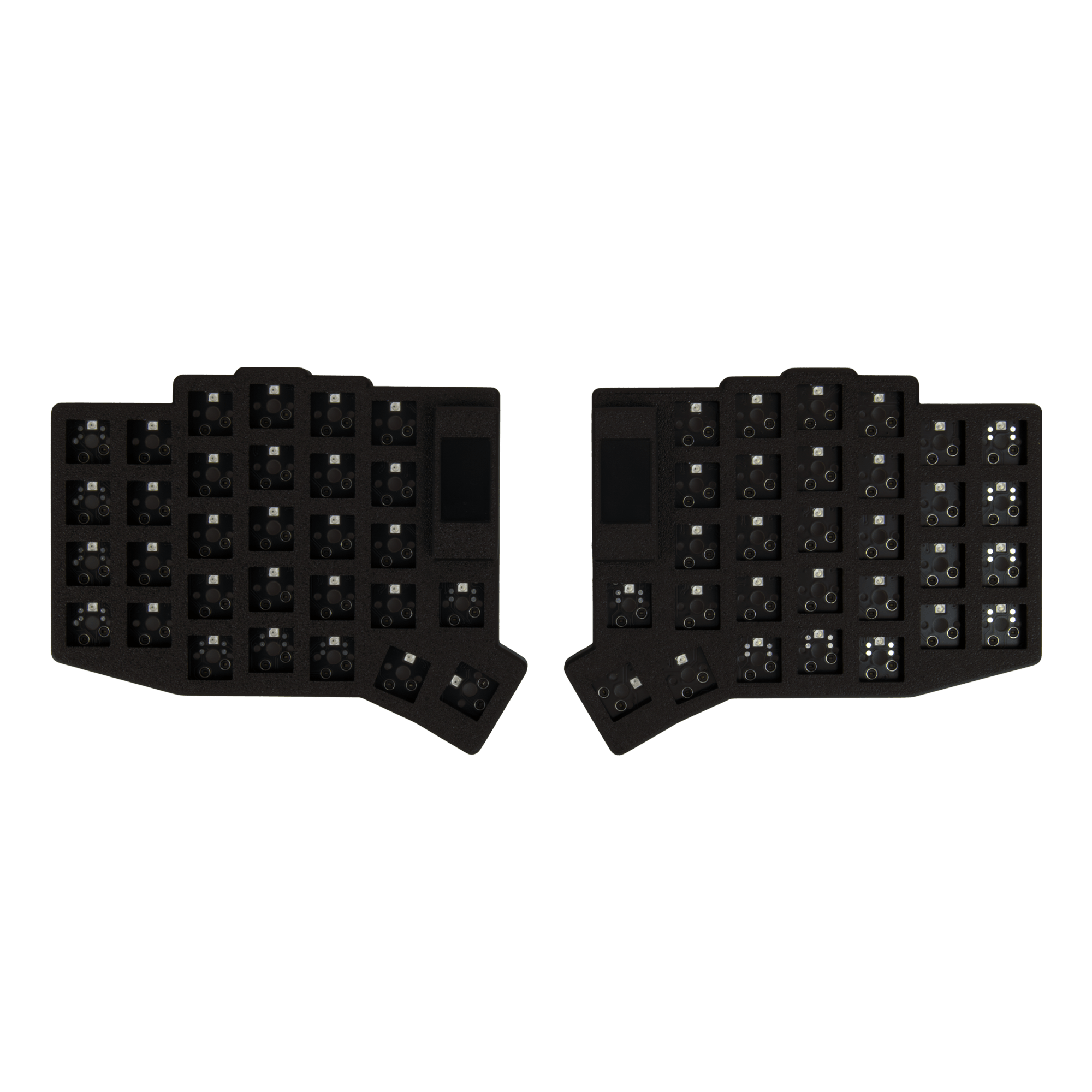

- 2x PCBs (black)
- 2x Switch plates (FR4)
- 2x Bottom plates (FR4)
- 65 Diodes
- Hotswap sockets
- 2x OLED screens
- Screws and standoffs
- Adhesive rubber feet
- TRRS jacks
- Reset buttons
- 2x encoders & knobs
- Acrylic OLED covers (3mm clear acrylic)
- Basic TRRS cable
For more information on this kit, please check here – https://github.com/josefadamcik/SofleKeyboard
Please note the FR4 plate in the choc kit has been modified to allow extra room for the encoder.
*Do not hotplug TRRS cables while your keyboard is powered as this can cause permanent damage.
Customer Reviews
Was a simple/fun build apart from the SMD (diodes) they are kinda tricky so dont rush it and you will get the hang of it after a few are in place. Get some controller/oled hotswap sockets for ease if access.
Tested with both ATMEGA32U4 & RP2040 (rp2040 has better clearance) just remember to double check you have both controllers in the correct orientation. Using it with some HMX Jammys & KAM Superuser and i love it but its tricky to get used to it and certin keycap sets wont have full compatibility so keep that in mind.
Really happy with my purchase! The whole kit is a great deal considering what is included!
Can't wait to build this
