CFTKB Mysterium Kit (V1)

SKU: ACFTKKT0815136
Save £20
/
Tax included for UK customers. Shipping calculated at checkout.
  • Only 4 items in stock
  • Inventory on the way

This is the Mysterium kit, designed by cftkb.comThe product on sale here is the V1 kit. It does not come with a switch plate or plate foam. All parts sourced by us. PCB files used under licence (V1... Read more +

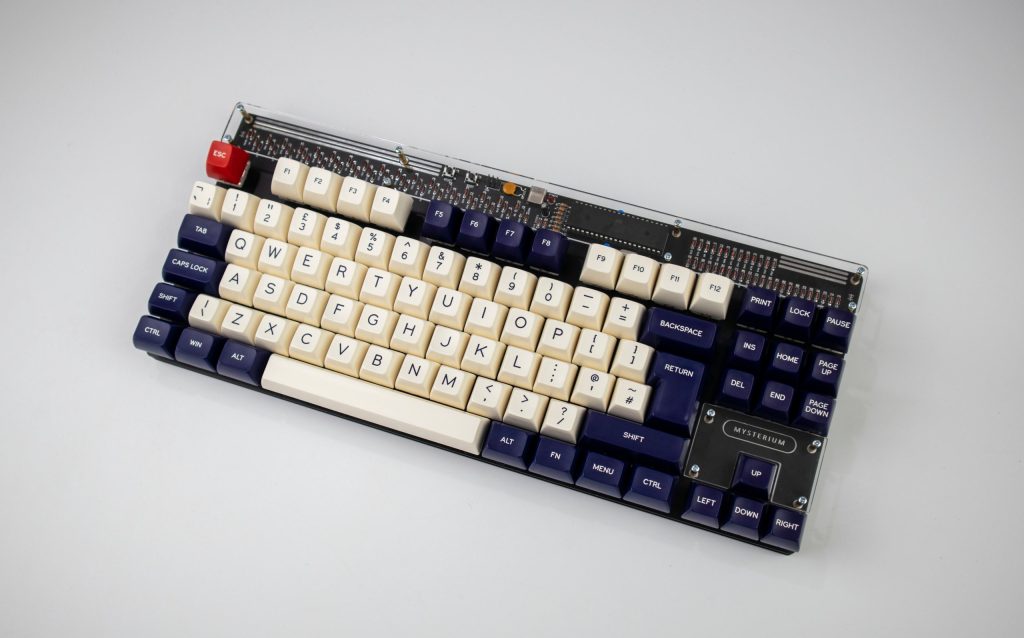

This is the Mysterium kit, designed by cftkb.com
The product on sale here is the V1 kit. It does not come with a switch plate or plate foam. All parts sourced by us. PCB files used under licence (V1).



The PCB allows for ANSI & ISO.



It includes all parts listed in their BOM, with a couple changes (screws & standoffs are slightly different)



PCB and bottom plate (NO SWITCH PLATE – 5-pin switches HIGHLY recommended)
All components (USB-C)
Screws and Standoffs, & Rubber Feet
Preflashed Controller

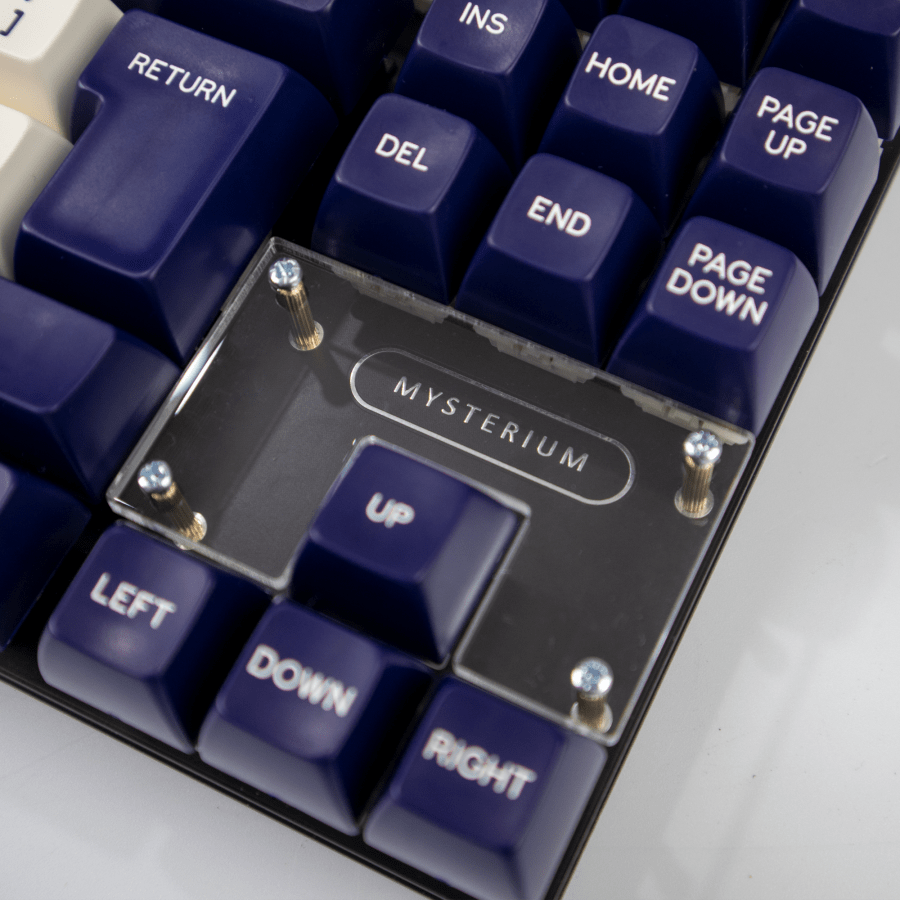

Acrylic Pieces



NOTE: USB-C connector is hard to solder. Experienced users only.

BUILD GUIDE

Version

Mysterium V1 (Altered to add ISO)

Switch Compatibility

MX Style

Requires 5-pin

Yes

Lighting

No

Hot-swap

Millmax Possible

Requires Soldering

Yes

Kit Contents

PCB
Diodes
Atmega32A MCU
Reset Switches
LEDs
Resistors
Capacitors
FR4 Case
Acrylic Covers
Screws
Standoffs
Feet

Required to Complete

Switches x88/89
Keycaps x88/89
PCB-mount Stabilisers

Build Guide

Link
