Helix Kit

SKU: ANOBRKT0915128
Helix Kit - Mechboards

Helix Kit

SKU: ANOBRKT0915128
Type
Regular price £50.00
/
Tax included for UK customers. Shipping calculated at checkout.
  • In stock
  • Inventory on the way

Helix Split Ortho Keyboard Kit created by MakotoKurauchi Build Guide Comes with all solderable components and new FR4 plate case. To complete this kit you need 70 switches , 2 controllers and keyca... Read more +

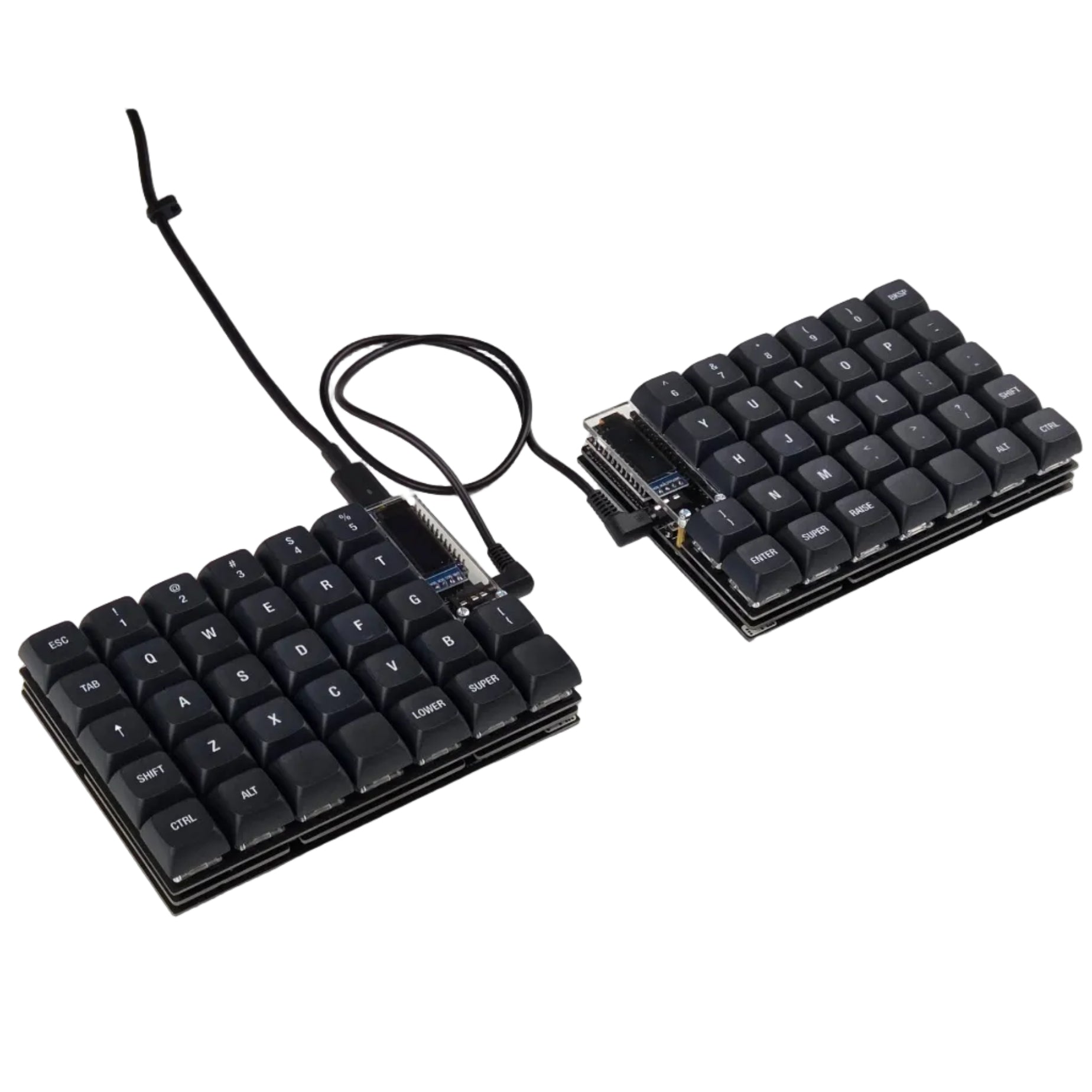

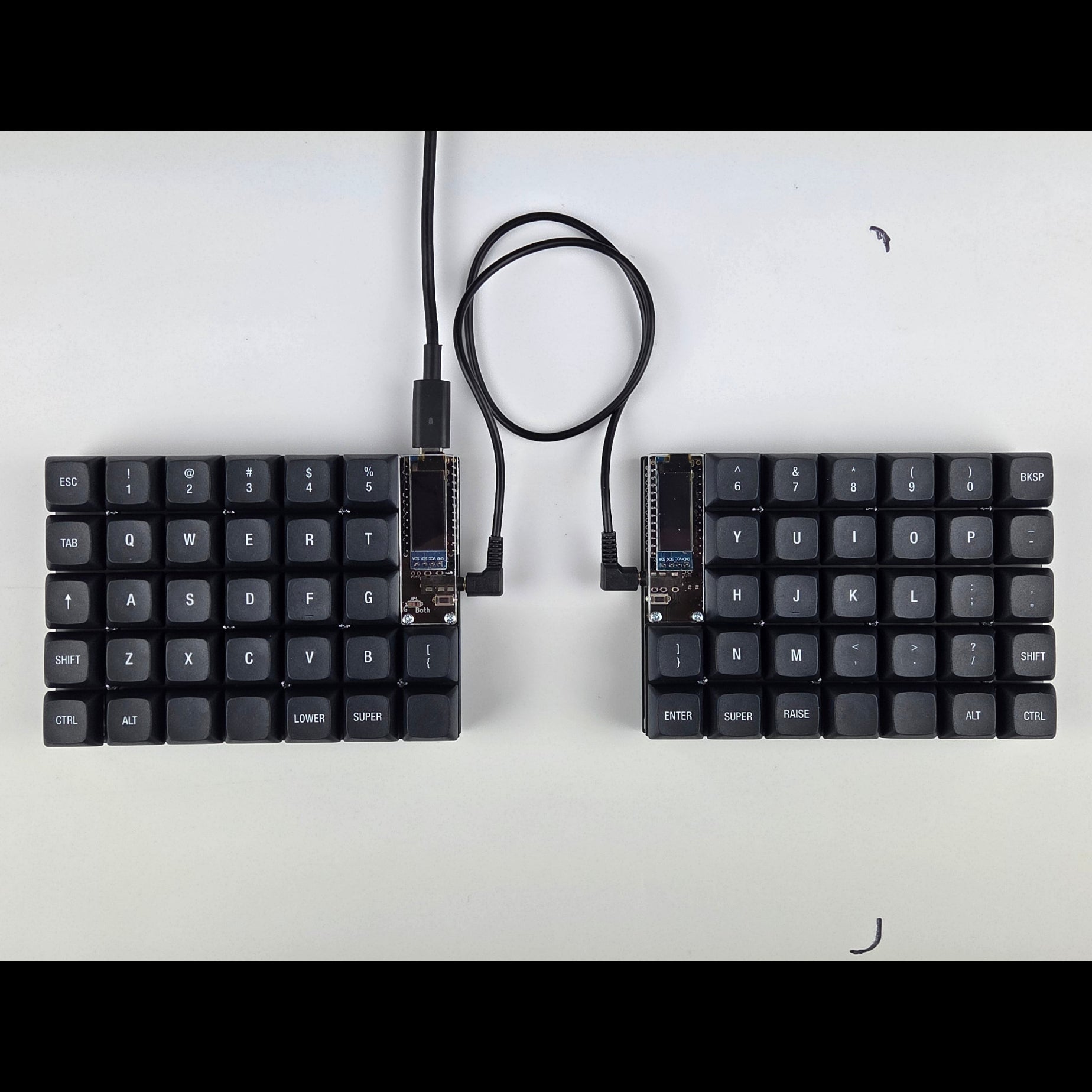

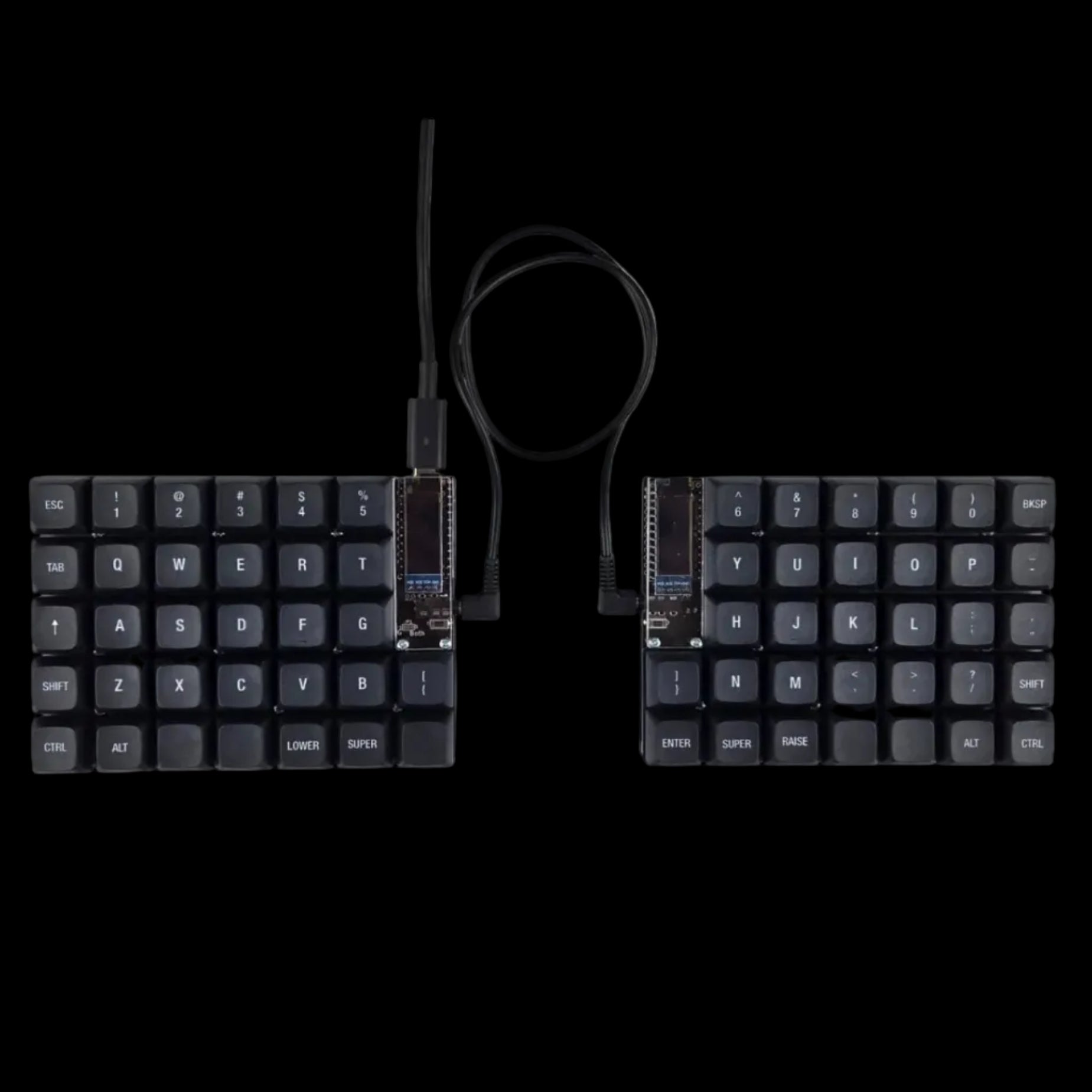

Helix Split Ortho Keyboard Kit created by MakotoKurauchi

Build Guide

Comes with all solderable components and new FR4 plate case.

To complete this kit you need 70 switches , 2 controllers and keycaps.

Helix Hotswap is currently not Choc compatible.

Version

Helix Basic v1.01

Switch Compatibility

MX Style
Alps
Choc v1

Requires 5-pin

No

Lighting

Yes

Hot-swap

No

Requires Soldering

Yes

Kit Contents

PCB
Diodes
OLED Screens
LEDs
TRRS Jacks
TRRS Cable
Reset Switches
FR4 Case + Plate
Acrylic Covers
Screws
Standoffs
Feet

Required to Complete

Pro-Micro or Equivalent Controller x2
Switches x64
Keycaps x64

Build Guide

Link

----------------------------------------------------------------------------------------

Version

Helix Hotswap v1.03

Switch Compatibility

MX Style

Requires 5-pin

No

Lighting

Yes

Hot-swap

Yes

Requires Soldering

Yes

Kit Contents

PCB
Diodes
OLED Screens
LEDs
TRRS Jacks
TRRS Cable
Kailh MX Hotswap Sockets
Reset Switches
FR4 Case + Plate
Acrylic Covers
Screws
Standoffs
Feet

Required to Complete

Pro-Micro or Equivalent Controller x2
Switches x64
Keycaps x64

Build Guide

Link
