Plaid Kit

SKU: ANOBRKT0215115
Plaid Kit - Mechboards

Plaid Kit

SKU: ANOBRKT0215115
Regular price £55.00
/
Tax included for UK customers. Shipping calculated at checkout.
  • In stock
  • Inventory on the way

A 4×12 ortholinear keyboard kit made with through hole components only. Atmega328p pre-flash with a bootloader, keymap files on QMK firmware. NOTE: PCB’s are now Black! BOM LIST BUILD GUIDE Sold un... Read more +

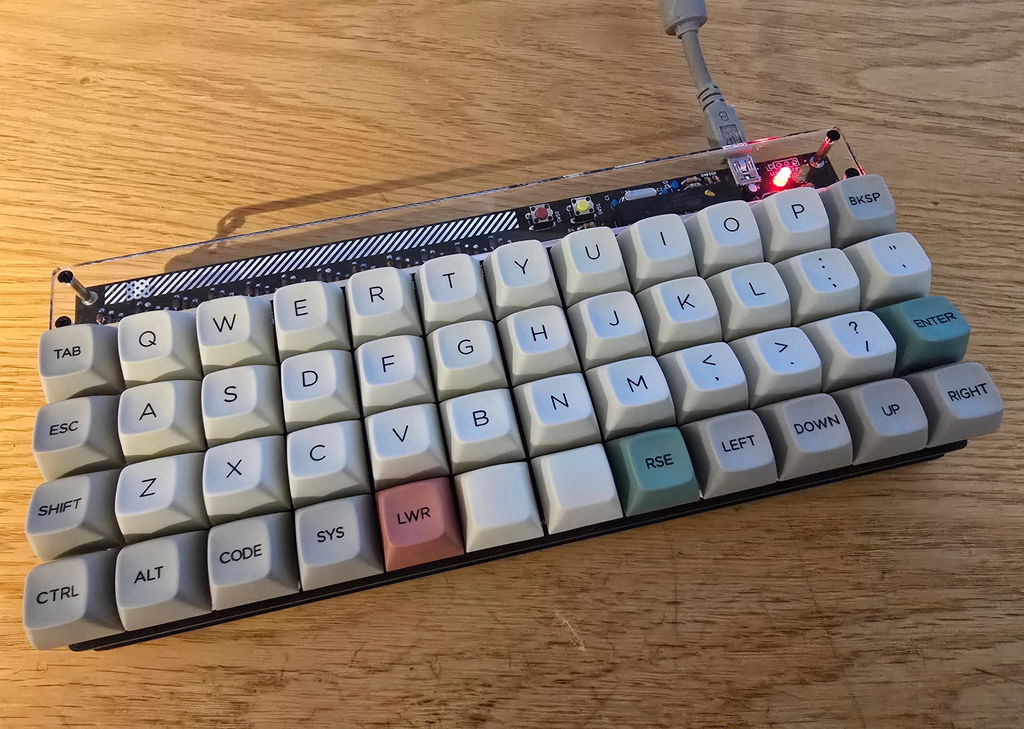

A 4×12 ortholinear keyboard kit made with through hole components only.

Atmega328p pre-flash with a bootloader, keymap files on QMK firmware.

NOTE: PCB’s are now Black!

BOM LIST

BUILD GUIDE

Sold under MIT Licence with permission from designer – https://github.com/hsgw/plaid

To complete this kit you need to purchase 50 switches.

Version

Plaid Rev.1

Switch Compatibility

MX Style

Requires 5-pin

Yes

Lighting

No

Hot-swap

Millmax Possible

Requires Soldering

Yes

Kit Contents

PCB
Diodes
Atmega328p MCU
LEDs
Resistors
Capacitors
Reset Switches
FR4 Case
Acrylic Cover
Screws
Standoffs
Feet

Required to Complete

Switches x47/48
Keycaps x47/48
PCB-mount Stabiliser - 1x2u

Build Guide

Link
