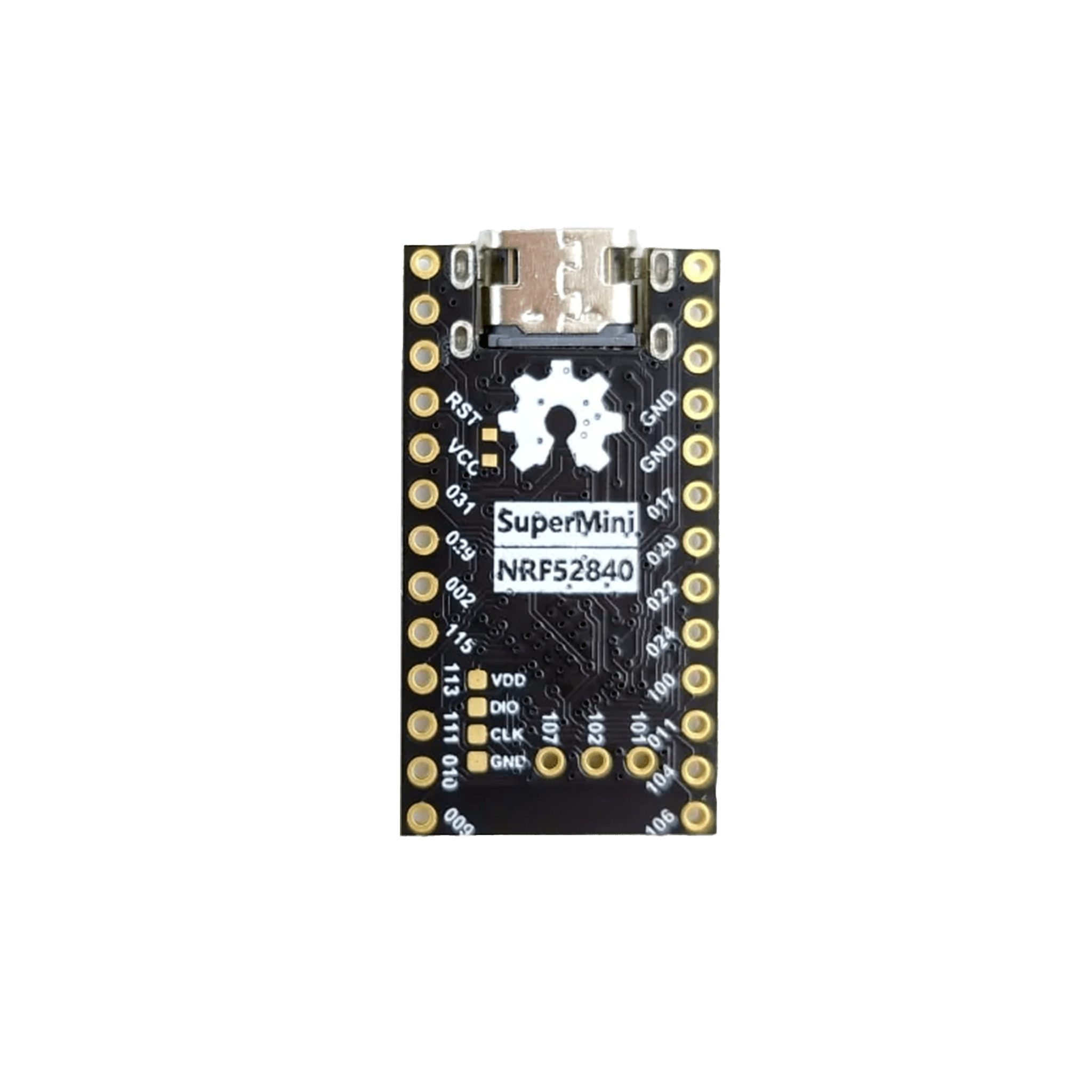

SuperMini nRF52840 BLE


SKU:
£13.50 GBP
Tax included. Shipping calculated at checkout.
Description

Boost your DIY projects with the SuperMini nRF52840 BLE Pro Micro. This wireless BLE controller offers a Pro Micro/Elite-C compatible pinout for easy integration and adds the convenience of wireless connectivity.

Features
BLE Bluetooth connection (Ultra-low power usage)
Mid-mount USB Type-C
Total of 21 I/O Pins (3 more than the Pro Micro)
1.6mm thick PCB for a slimmer profile

What's included
SuperMini Controller
2x 12-pin headers
1x 3-pin header

Compatibility
Compatible with Pro Micro-based PCBs

Socket type
Mid-mount USB Type C

Size
Length - 34.1mm
Width - 18.3mm
Height - 3.3mm

MCU Specifications (Nordic nRF52840)
Voltage - 5V
Clock speed - 64 MHz
Digital I/O pins - 25
RAM - 256 KB
Program memory - 1MB
Bootloader - Adafruit

Firmware support
ZMK
BlueMicro

Useful links
ZMK

Addons
Controller Sockets
Socket Pins

Soldering required

    This controller will NOT work with the Gherkin or Helix unless you leave the RAW pin disconnected from the board.

    For split builds, you will need to purchase 2. Due to limitations/restrictions, these do not play nice with other micro-controllers.

    Requires a 3.7v lithium rechargeable battery. We recommend this Battery as it fits under the header pins.

    DO NOT use with TRRS cables, this can result in breaking the controller(s).
